DOC120-FT TW LED TUNABLE WHITE [New Construction]
Choose a family:
Diameter ⌀: 6.10 in
Diameter ⌀: 6.10 in
Diameter ⌀: 8.50 in
Diameter ⌀: 8.50 in

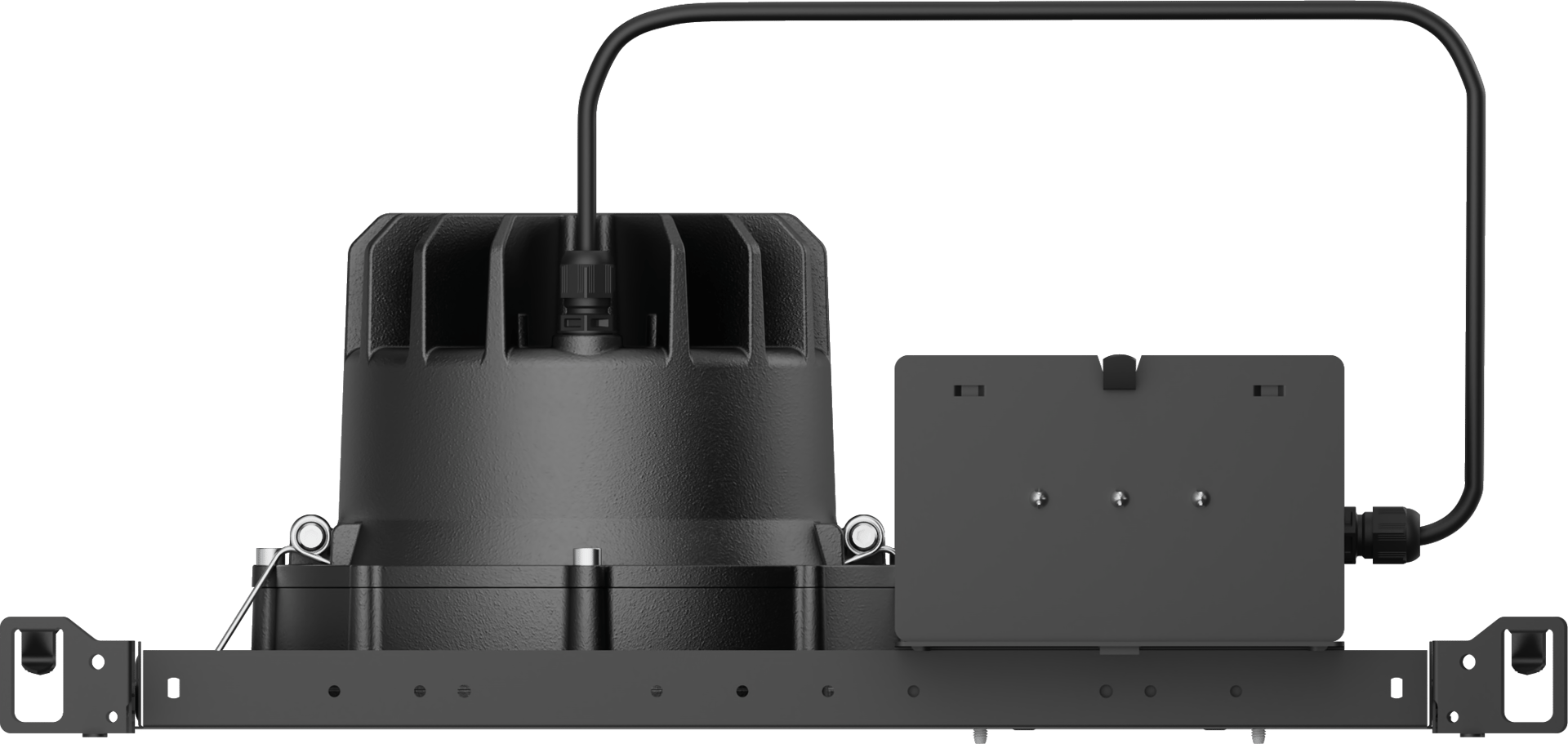

DOC120-FT TW LED for new construction. For remodel projects, see DOC120-FT TW LED [For Remodel] version. IP66, Class I. IK07. Marine-grade, die-cast aluminum alloy. 5CE superior corrosion protection including PCS hardware. Silicone CCG® Controlled Compression Gasket. Safety glass lens. Two cable entries. Integral driver in thermally separated compartment. Darklight anodized aluminum reflector for superior illumination and glare control. Factory-installed LED circuit board. Tunable White technology. DMX Interface. Specify product with 7 Digit product code – Finish Color. Accessories, such as mounting, optical, and electrical, must be specified separately. Example: XXX-XXXX – 9004 (Black) + XXX-XXXX (Accessory 1)

Colors
Material
| Body | Marine-grade, die-cast aluminium alloy |
| Fasteners | PCS Polymer Coated Stainless Steel Hardware |
| Gasket | Silicone CCG® Controlled Compression Gasket |
| Impact Protection | IK07 |
| Ingress Protection | IP66 |
| Corrosion Protection | 5CE |
Electrical
| Ballast / Driver | Integral EC electronic converter in thermally-separated compartment |
| Cable | Two cable entries |
| Power Factor | > 0.9 |
| Power Supply | Integral [ECG] electronic driver 120V-277V. 0-10V dimmable, to be specified with order. |
Additional Information
| Lifetime | Ta=25°/40° L70B50 > 90000h |
Accessories
| Item | Download |
|---|---|
| Product Images | |
| Photometrics | |
| Installation Instructions |
